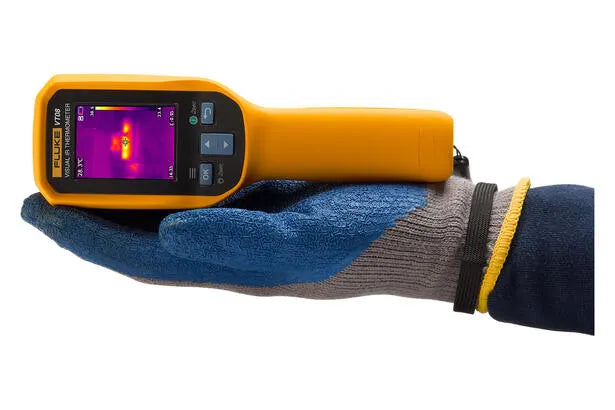

Fluke VT08 Visual IR Thermometer

Product Overview

The Fluke VT08 Visual IR Thermometer is an advanced, rugged thermal inspection tool from the Fluke VT series, designed for industrial maintenance, electrical inspections, HVAC systems, and troubleshooting applications. Its compact design combined with visual + infrared image blending technology enables fast, accurate, and clear temperature measurements.

Built with Fluke’s legendary durability, the VT08 performs reliably in harsh industrial environments. With real-time visual and thermal overlays, you can easily detect hot spots and temperature anomalies.

Key Features

• 120 × 90 Infrared Resolution – Provides clear and detailed thermal images.

• Wide Temperature Range – Measures from -20 °C to 400 °C (-4 °F to 752 °F).

• Visual + Infrared Image Overlay – Real-time blending for accurate target identification.

• IP65 Rated – Dust and water-resistant, suitable for industrial use.

• 2-Meter Drop Test Passed – Extra durability for tough environments.

• Built-in Laser Pointer – Quickly locate measured targets.

• Fast Charging & Long Battery Life – Charges in 2 hours, lasts up to 5 hours.

• Single-Level Menu – Simple and user-friendly operation.

Applications

• Electrical panels and connections inspection

• Industrial equipment maintenance

• HVAC system inspection

• Overheating component detection

• Preventive and predictive maintenance

Technical Specifications

Thermal Image & Optics

• Infrared Resolution: 120 × 90

• IR Frequency Band: 7.5 – 14 μm

• Frame Rate: 9 Hz

• Thermal Sensitivity (NETD): < 60 mK

• Field of View (H × V): 50° × 37.5°

• Spatial Resolution: 7.6 mrad

• Focus System: Focus-Free

• Minimum Focus Distance: 0.5 m

Visible Light Camera

• Resolution: 320 × 240

• FOV (H × V): 53° × 41°

Image Display & Storage

• Modes: Thermal Image, Visible Image, PIP

• Color Palettes: Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale

• Internal Storage: >28 GB (100,000+ images)

• File Format: JPEG (.jpg)

• PIP Mode: Yes

Temperature Measurement

• Measurement Range: -20 °C to 400 °C (-4 °F to 752 °F)

• Accuracy: ±2 °C or ±2% @ 23 °C ±5 °C

• Emissivity: Adjustable

• Background Temperature Compensation: Yes

• Auto High/Low Temperature Capture: Yes

• Center Point Temperature: Yes

• Alarm: Maximum & Minimum Temperature Alarm

Interface & Lens

• Visible Lens: Yes

• Infrared Lens: Yes

• Flashlight: Yes

• Laser Sighting: Yes (Class 2)

• USB Interface: Type-C

• Tripod Mount: Yes

• Mobile App Support: No

Power System

• Battery Type: Rechargeable Li-ion (Non-removable)

• Battery Life: ≥ 5 Hours

• Charging Time: < 2.5 Hours

• Charging Temperature: 0 °C to 45 °C

• Power Adapter: 5 V DC, 2 A (Universal Adapter Included)

• Power Saving Mode: Yes

Environmental Specifications

• Operating Temperature: -10 °C to 50 °C

• Storage Temperature: -40 °C to 70 °C

• Operating Altitude: 2000 m

• Protection Class: IP65 (Type-C port closed)

• Relative Humidity: ≤ 90% (Non-condensing)

• Drop Test: 2 m

Safety & Compliance

• Safety Standard: IEC 61010-1 (Pollution Degree 2)

• Laser Safety: IEC 60825-1, Class 2, 650 nm, <1 mW

• Battery Standard: IEC 62133-2, UN 38.3

• EMC Compliance: IEC 61326-1, CISPR 11 (Group 1, Class A)

General Information

• Display: 2.4-inch (6.096 cm) LCD

• Language: English

• Dimensions: 20.4 × 6.6 × 7.6 cm

• Weight: 0.36 kg

• Warranty: 1 Year

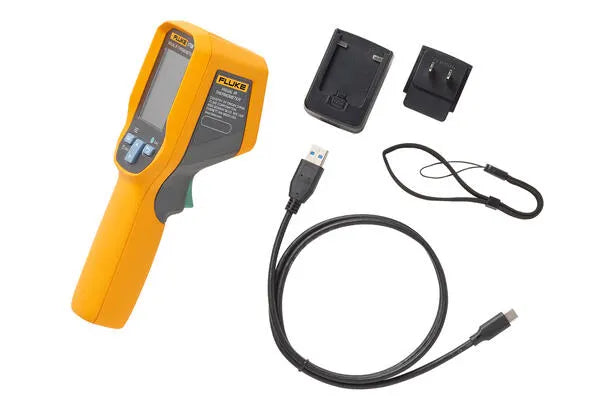

Standard Accessories

• Wrist Strap

• Quick Reference Guide

• Charger with Universal Adapter

• Type-C Data Cable

• Data Downloading Card
