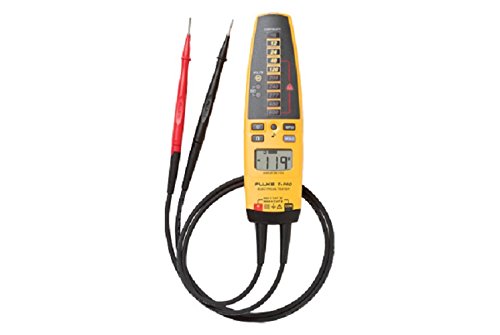

Fluke T+Pro Electrical Tester

The Fluke T+Pro Electrical Tester is a professional-grade voltage tester designed to help electricians and technicians work safer and faster in demanding environments. Safer than traditional solenoid testers and fully compliant with NFPA 70E (when used per Article 110.4), the T+Pro reliably indicates the presence of voltage—even when the batteries are dead.

With three forms of AC/DC voltage indication (light, sound, and vibration), a backlit LCD with HOLD function, GFCI testing, resistance measurement up to 9.99 kΩ, and a built‑in flashlight, the Fluke T+Pro is the first-choice electrical tester for everyday troubleshooting and safety checks.

Key Features

• Detects live voltage and shows voltage level even with dead batteries

• Triple indication: Light, sound, and vibration for AC/DC voltage detection

• Audible alert can be disabled for silent operation

• Backlit LCD display with HOLD function for hard-to-reach areas

• Built-in flashlight to illuminate test points

• GFCI trip function for outlet testing

• Resistance measurement up to 9.99 kΩ

• Rotary field indicator and convenient probe storage

• Designed for safe operation in industrial and commercial environments

How to Use the Fluke T+Pro Electrical Tester

The Fluke T+Pro indicates AC/DC voltage using three alert methods:

• Light indication for visual confirmation

• Sound alert for audible detection (optional)

• Vibration alert for noisy or low‑visibility environments

These alerts ensure voltage detection even in dark or loud work areas. The HOLD function freezes readings on the LCD, making it easier to view measurements when access is limited.

Safety & Compliance

• Safety rated to CAT IV 600 V and CAT III 1000 V

• CSA approved

• Compliant with NFPA 70E electrical safety standards

• Voltage hazard LEDs activate above 30 V AC/DC

• Two‑year manufacturer warranty

Technical Specifications

Environmental

• Operating Temperature: -10°C to 55°C (14°F to 131°F)

• Storage Temperature: -30°C to 60°C (-22°F to 140°F)

• Relative Humidity:

  • 90% (0°C to 30°C)

  • 75% (30°C to 40°C)

  • 45% (40°C to 50°C)

• Operating Altitude: Up to 2,000 m

• Storage Altitude: Up to 10,000 m

Electrical

• Maximum Working Voltage: 1000 V AC/DC

• Maximum Measurable Voltage: 600 V AC/DC

• AC Bandwidth: 45 Hz to 66 Hz

• Standard Input Test Current: < 5 mA

Voltage Indication Levels (LED)

12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V

Accuracy

• AC Voltage: ±(3% rdg + 2 digits)

• DC Voltage: ±(2% rdg + 2 digits)

• Resistance: ±(5% rdg + 3 digits)

Resolution

• 0.1 V (< 50 V)

• 1 V (≥ 50 V)

• 0.01 kΩ (Resistance)

Duty Cycle

• Continuous use up to 240 V

• 240 V–600 V: 30 s ON / 300 s OFF

GFCI Test

• 100 V–150 V @ 6–9 mA AC

• 150 V–240 V < 12 mA

Power & Physical

• Battery: 2 × AAA, approx. 40 hours life

• Dimensions: 7.6 × 2.15 × 1.3 in (19.3 × 5.46 × 3.3 cm)

• Weight: 9.9 oz (0.28 kg)
