Product Description

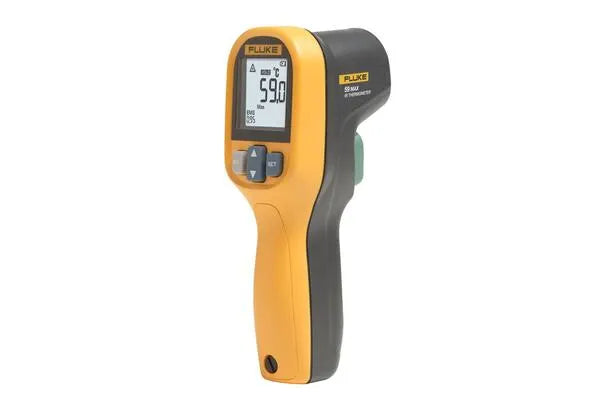

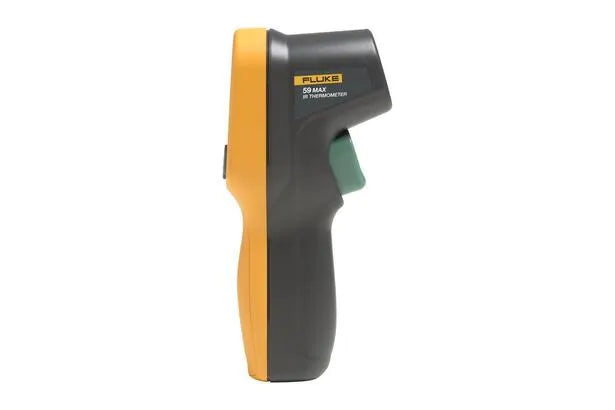

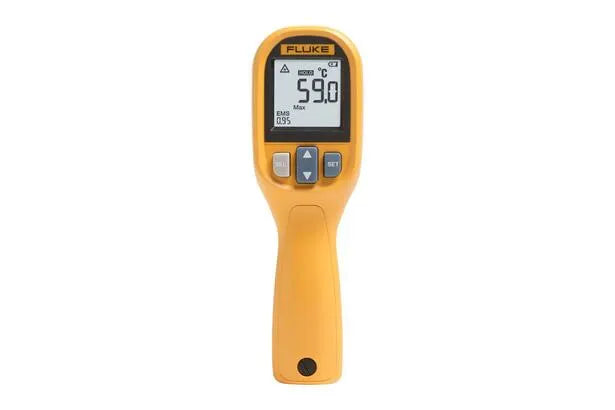

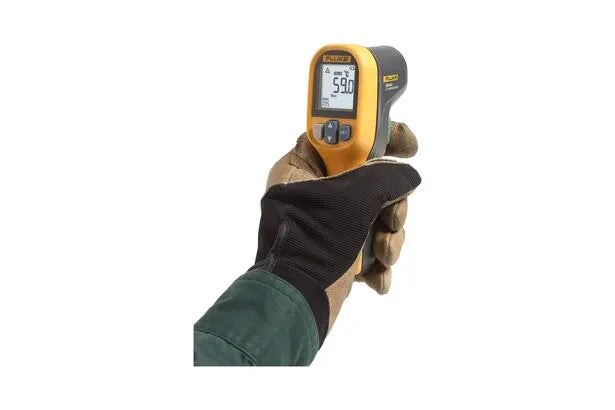

The Fluke 59 MAX Infrared Thermometer is a high-accuracy, non-contact temperature measurement device specially designed for industrial and electrical applications. It delivers fast, accurate, and repeatable readings, and its compact design fits easily into any tool bag.
Available on Industrial Cart, the Fluke 59 MAX is an ideal solution for maintenance engineers, electricians, and technicians who need to measure temperature safely from a distance.
Key Features
-
Temperature Range: -30°C to 350°C (-22°F to 662°F)
-
Laser Targeting: Single laser for precise measurement
-
Distance-to-Spot Ratio: 8:1 for accurate targeting
-
Backlit LCD Display: Clear readings even in low-light conditions
-
Measurement Modes: MAX, MIN, DIF, and AVG
-
High & Low Alarms: Instant alerts when temperature exceeds set limits
-
Compact & Rugged Design: Passed 1-meter drop test
-
Fast Response Time: < 500 ms
-
Power Supply: 1 × AA battery
-
Warranty: 1 year
Product Overview
The Fluke 59 MAX Infrared Thermometer is a reliable and easy-to-use IR thermometer that enables safe non-contact temperature measurement. Its bright backlit display and laser targeting system ensure accurate and consistent readings.
This thermometer is ideal for checking transformers, motors, pumps, panels, breakers, compressors, ducts, and vents—without physical contact, improving safety during inspections.
Designed for Quick & Easy Measurements
With its compact size and ergonomic design, the Fluke 59 MAX is perfect for daily industrial use. Built to withstand tough working conditions, it continues to perform reliably even after a 1-meter drop.
Available Measurement Functions:
Laser Targeting & Accuracy
The Fluke 59 MAX features an 8:1 distance-to-spot ratio and single laser targeting, allowing you to accurately measure the correct surface area. Its adjustable emissivity (0.10 – 1.00) ensures precise readings across a wide range of surfaces.
Applications
-
Electrical Panels
-
Motors & Pumps
-
Transformers
-
HVAC Systems
-
Compressors
-
Ducts & Vents
-
Industrial Maintenance
-
Preventive Inspections
Technical Specifications
Temperature Range:
-30°C to 350°C (-22°F to 662°F)
Accuracy:
Response Time:
< 500 ms (95% of reading)
Spectral Response:
8 µm to 14 µm
Emissivity:
0.10 to 1.00 (adjustable)
Display Resolution:
0.1°C (0.2°F)
Repeatability:
±1.0% of reading or ±1.0°C
Power Supply:
1 × AA IEC LR06 Battery
Battery Life:
Up to 12 hours (laser & backlight ON)
Weight:
220 g
Dimensions:
156 × 80 × 50 mm
Operating Temperature:
0°C to 50°C
Ingress Protection:
IP40
Drop Test:
1 meter
Laser Safety:
Class II (FDA & EN 60825-1)
Compliance:
EN/IEC 61010-1, EMC 61326-1 / 61326-2
